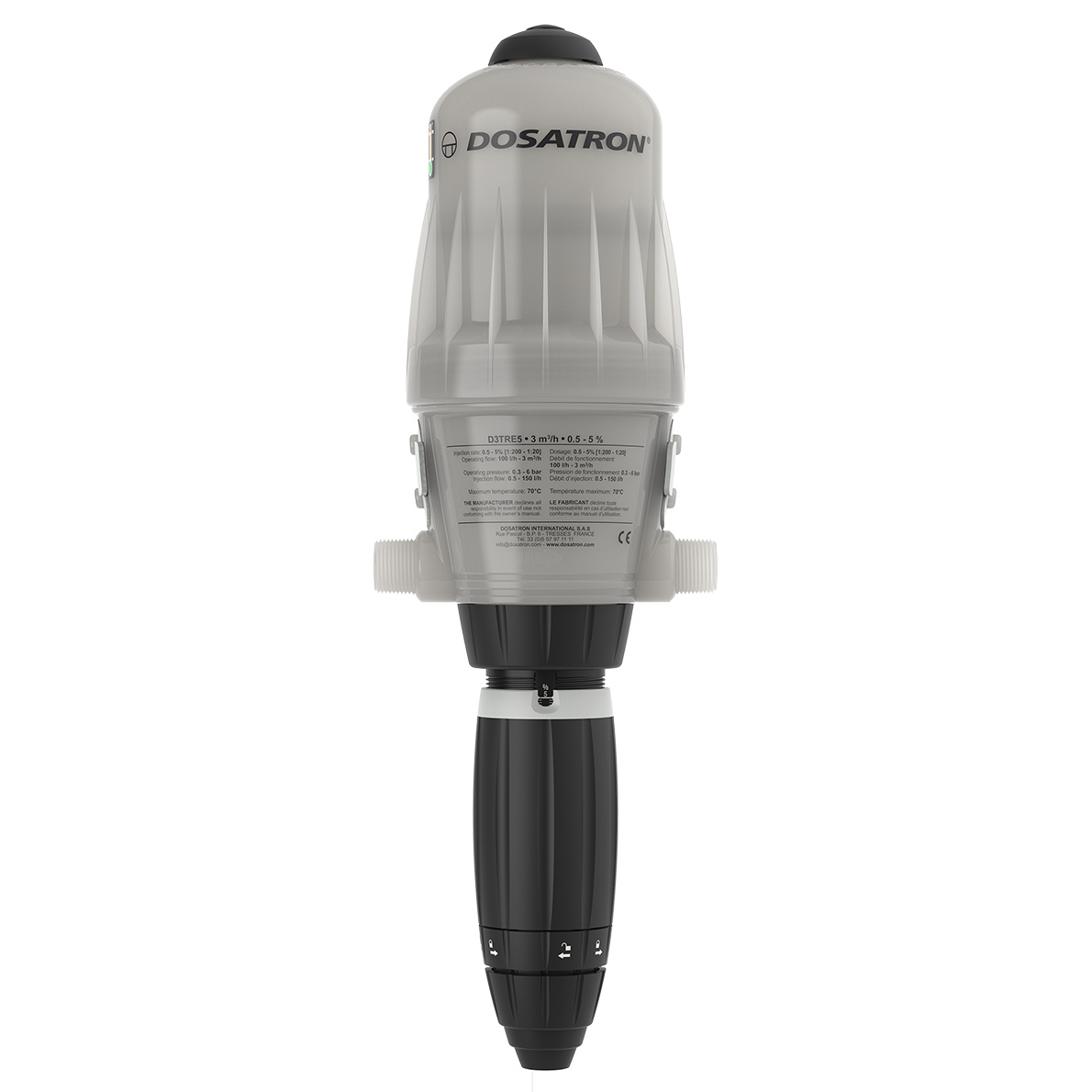

D3TRE5 | Dosatron dosing pump for high temperatures

Dosatron high-temperature dosing pump for disinfection and detergency in agrifood hygiene

• Maximum effectiveness of cleaning products
• Compatible with all types of acid and alkaline chemicals
• Reliable and consistent dosing
• Optimisation of water and chemical consumption
• Extremely easy of use - plug & play

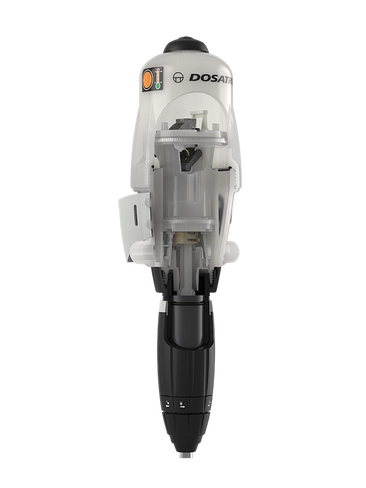

The D3TRE5 high-temperature dosing pump features a set of innovative technologies which are the result of 5 years of research, field tests and mechanism improvements in order to guarantee its performance over the entire temperature range of the motive fluid, up to 70°C (158°F).

• We have developed a special heat-sensitive label that indicates the temperature level of motive fluid, taking into account the thermal conductivity of the housing.
• Particular attention has been paid to the choice and quality of the materials, with the aim of limiting friction, maintaining pressure levels and increasing the mechanical strength of the dosing pump.
• The spring-loaded lips mechanically compensate for any expansion caused by high temperatures.

• Seals for acidic additives
• Seals for alkaline additives
• Seals for alkaline additives with sodium hydroxide, potassium hydroxide or quaternary ammonium
• Special heat-sensitive label that indicates the temperature level of motive fluid

• Injection range 0.5 - 5% [1:200 - 1:20]
• Water flow range 100 l/h - 3m3/h
• Operating water pressure 0.3 - 6 bar
• Concentrated additive injection 0.5 l/h - 150 l/h
• Stroke volume ~ 0,53 l
• Connections 3/4'' GAZ Ø 20x27mm
• Suction hose L 2.75m Ø 12x16mm
